You are here - All Product > Hydraulic Swage Fittings > Standard Stainless Steel Inserts

JIC Male

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

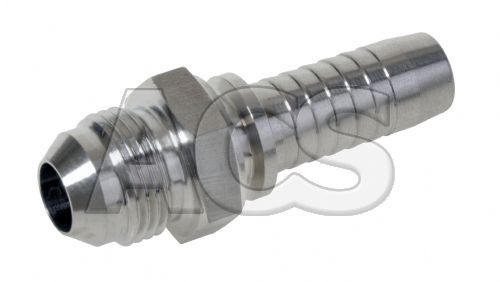

Standard stainless steel insert with JIC Male thread to suit hydraulic hoses.

37 degree JIC, UNF thread to SAE J 475/ANSI B1.1

The hose size shown is the inside diameter in 1/16".

Please note the following Schwer ferrules (see related products) must be used with these Schwer inserts.

Technical Details

Manufacturers Ref:

SA-AGJ

Datasheets

Click Here

Prices (Click quantity for more availability info)

Thread	Hose size (1/16”)	Order Code	Available	Each
7/16" JIC	-03	132380	0	£12.55
7/16" JIC	-04	132381	0	£12.55
1/2" JIC	-04	132382	0	£13.73
9/16" JIC	-04	132383	0	£14.12
1/2" JIC	-05	132384	0	£14.52
9/16" JIC	-05	132385	0	£38.77
9/16" JIC	-06	132386	0	£14.27
3/4" JIC	-06	132387	0	£17.48
7/8" JIC	-06	132388	0	£23.87
3/4" JIC	-08	132389	1	£17.13
7/8" JIC	-08	132390	0	£17.97
7/8" JIC	-10	132391	0	£22.80
1 1/16" JIC	-10	132392	0	£44.37
1 1/16" JIC	-12	132393	0	£28.38
1 5/16" JIC	-12	132394	0	£59.38
1 1/16" JIC	-16	132395	0	£52.35
1 5/16" JIC	-16	132396	0	£38.72
1 5/8" JIC	-16	132397	0	£104.68
1 5/8" JIC	-20	132398	0	£66.87
1 7/8" JIC	-24	132399	0	£83.98

(All Prices Exclude VAT)
