Solenoid valves 2 port NC 3/8" to 1" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

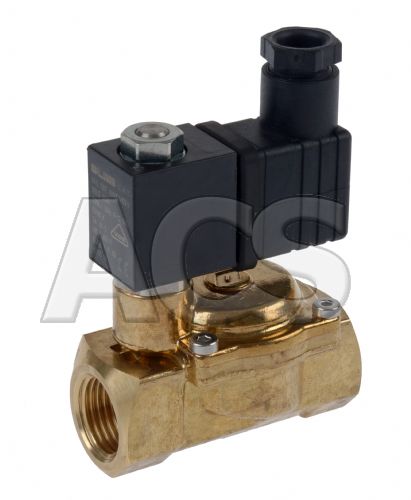

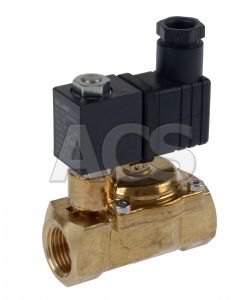

Pilot operated normally closed two way solenoid valves with brass body. On/off valves suitable for a wide range of liquid and gaseous fluids.

These are servo controlled diaphragm solenoid valves BSP threaded connections.

Fitted with FKM seal.

Valve, coil and cable connecting plug must be ordered separately - 1 coil and cable plug required per valve.

This is a highly competitive and robust range of solenoid valves.

The team at ACS are always happy to help with any requirements you may have. Please contact us.

Available on request:

Solenoid valve up to 2" BSP
NBR or EPDM Seal
Normally open valve

Technical Details

Temperature:	-10 to +150 deg C (medium)
Viscosity:	up to 37 cStokes

Datasheets

Solenoid valves 2 port NC 3/8 to 1 BSP datasheet

Click Here

Prices (Click quantity for more availability info)

	Connection	Orifice	Pressure range	KV (m3/hr)	Order Code	Available	Each
Solenoid valve 2 port Normally Closed
	3/8" BSP	11.5mm	0.1 - 15 bar	1.7	137731	0	£76.97
	1/2" BSP	13.5mm	0.1 - 15 bar	3.8	137732	5	£76.97
	3/4" BSP	13.5mm	0.2 - 15 bar	3.8	137733	0	£95.80
	3/4" BSP	18.0mm	0.2 - 15 bar	5	137734	0	£112.67
	1" BSP	26.0mm	0.2 - 12 bar	11	137735	14	£137.55
Coil 6000BH
	-	-	24V DC 10W	-	137739	17	£12.32
	-	-	24V AC 50-60 Hz 9VA	-	138371	26	£12.32
	-	-	230V AC 50Hz 9VA	-	138372	25	£12.32
Cable plug (form B - PG9)
	-	-	Standard	-	121231	28	£3.23
	-	-	24V AC/DC LED	-	121232	21	£8.49
	-	-	230V AC LED	-	121234	19	£8.49

(All Prices Exclude VAT)
