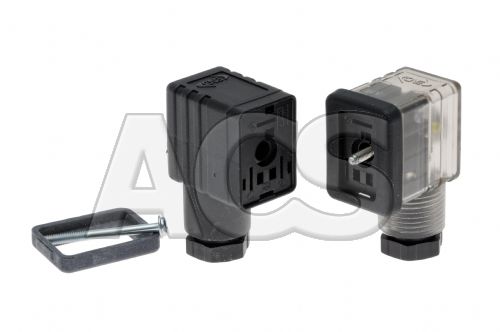

Cable Plug/DIN Plug 43650B

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

DIN 43650B plugs with 11mm contact spacing.

Plugs with V5 internal circuits have bipolar LED indicators confirming supply voltage plus varistor to give overvoltage protection to the source and load.

Technical Details

Housing:	black/transparent
Contacts:	screw with conductor protection
Number of poles:	2 plus earth
Contact spacing:	11mm
Cable entry:	PG7 (3-6.5mm cable) or PG9 (4-8mm cable)
Gasket:	NBR profile (other types on request)
LED Colour:	Amber
Fixing screw:	M3 x 32
Earth position:	H 12 (opposite to cable entry)
Protection Class:	IP 65 (mated)
Max conductor section:	1.5mm sq.
Conforms to:	Form B Industrial Standard

Datasheets

Cable Plug/DIN Plug 43650B datasheet

43650_B

Internal Circuits

Prices (Click quantity for more availability info)

	Contacts	Cable entry	Voltage	Order Code	Available	Each
Internal Circuit 00
	2 pin plus earth	PG7	1-250V AC/DC	121230	7	£2.28
	2 pin plus earth	PG9	1-250V AC/DC	121231	28	£3.23
Internal Circuit V5 with LED and varistor
	2 pin plus earth	PG9	24V AC/DC	121232	30	£8.49
	2 pin plus earth	PG9	115V AC/DC	121233	15	£8.49
	2 pin plus earth	PG9	230V AC/DC	121234	19	£8.49

(All Prices Exclude VAT)
