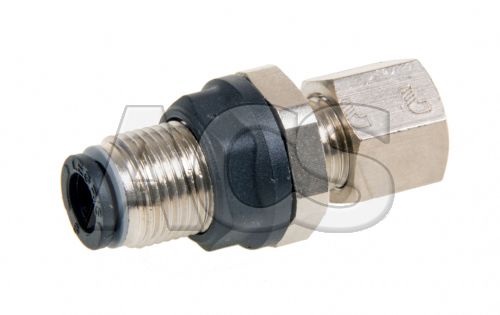

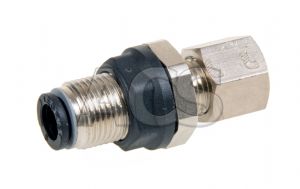

Legris LF3000 Push In Mixed Bullkhead Connector

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Legris LF3000 push in fitting equal mixed bulkhead connector suitable for metric outside diameter tube to compression fitting.

Technical Details

Compatible Fluids:	Compressed Air
Working Pressure:	Vacuum to 20 bar
Working Temperature:	-20 Deg C to +80 Deg C

Manufacturers Ref:	3146



Tube OD	Panel Cutout	Max Panel
4mm	10.5mm	7.0mm
6mm	12.5mm	8.0mm
8mm	15.5mm	8.0mm
10mm	18.5mm	8.5mm
12mm	22.5mm	8.5mm
14mm	25.5mm	10.5mm

Datasheets

Legris LF3000 Push In Mixed Bullkhead Connector datasheet

Click Here

Prices (Click quantity for more availability info)

Tube OD	Order Code	Available	Each
4mm	147866	0	£9.30
6mm	147867	400	£11.15
8mm	147868	0	£10.22
10mm	147869	10	£14.68
12mm	147870	9	£20.38
14mm	147871	0	£23.93

(All Prices Exclude VAT)
