Legris LF3000 Push In Stud - Male BSPT

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

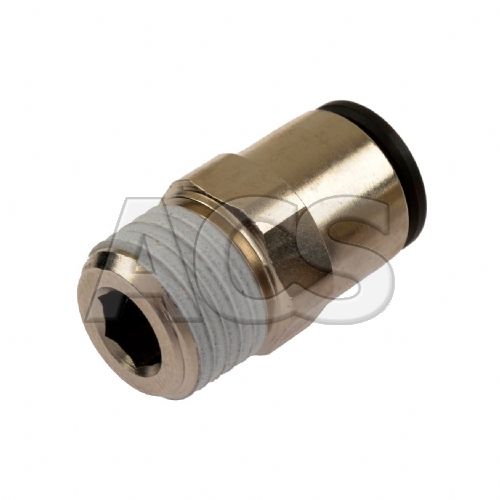

Legris LF3000 push in fitting - straight fitting with tapered BSP male thread. To suit metric outside diameter tubing.

Technical Details

Compatible Fluids:	Compressed Air
Working Pressure:	Vacuum to 20 bar
Working Temperature:	-20 Deg C to +80 Deg C

Manufacturers Ref:	3175

Datasheets

Legris LF3000 Push In Stud - Male BSPT datasheet

Click Here

Prices (Click quantity for more availability info)

Tube OD	Thread	Order Code	Available	Each
4mm	R1/8"	101004	30	£2.47
-	R1/4"	101005	48	£2.67
-	R3/8"	147681	0	£5.47
6mm	R1/8"	101014	26	£2.52
-	R1/4"	101015	34	£2.92
-	R3/8"	112591	15	£6.97
-	R1/2"	112592	23	£7.18
8mm	R1/8"	101019	23	£2.93
-	R1/4"	101020	27	£2.92
-	R3/8"	101021	23	£4.00
-	R1/2"	112593	29	£6.03
10mm	R1/8"	138801	11	£6.58
-	R1/4"	101025	30	£4.47
-	R3/8"	101026	22	£4.82
-	R1/2"	101027	18	£6.72
12mm	R1/4"	101031	18	£6.07
-	R3/8"	101032	15	£6.23
-	R1/2"	101033	24	£8.07
14mm	R3/8"	113301	13	£8.27
-	R1/2"	113302	15	£8.50
16mm	R3/8"	124081	6	£16.82
-	R1/2"	124082	29	£17.27

(All Prices Exclude VAT)
