2 Wire Hose 1/4" - 3/4"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

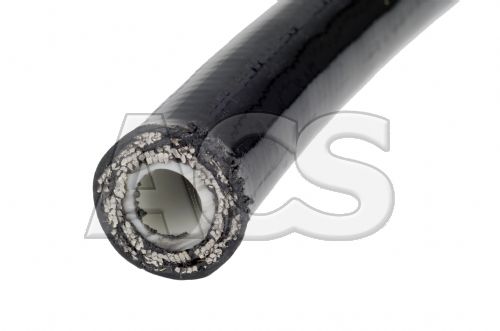

Thermoplastic elastomer tube with a double steel wire braid reinforcement for medium pressure hydraulic lines 150 to 430 bar.

Suitable for Hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids.

Other sizes available on request.

Pressure shown is maximum operating pressure with 4:1 safety factor.

Technical Details

Temperature:	-40 to +100 Deg C
	not to exceed +70 Deg C for Air and Water based fluids

Material:
Core:	Thermoplastic Elastomer
Reinforcement:	Double steel wire braid
Cover:	Polyurethane

Colour:	Black

Application Standards:	exceeds SAE/EN two wire braid hose specifications.

Manufacturers ref:	PH349

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Size (1/16”)	ID (mm)	OD (mm)	Pressure	Order Code	Available	Each
	-4	6.4mm	13.7mm	430 bar	130577	0	£7.48
	-5	8.0mm	15.2mm	380 bar	130578	0	£9.02
	-6	9.5mm	17.5mm	330 bar	130579	8	£11.78
	-8	12.7mm	21.1mm	270 bar	130580	0	£13.12
	-10	16.0mm	24.8mm	210 bar	130581	0	£16.03
	-12	19.0mm	28.4mm	175 bar	130582	0	£19.18
Ferrule
	-4	-	-	-	130610	138	£1.23
	-5	-	-	-	130611	21	£1.32
	-6	-	-	-	130612	104	£1.50
	-8	-	-	-	130613	96	£1.88
	-10	-	-	-	130614	21	£2.58
	-12	-	-	-	130615	37	£3.87
	-16	-	-	-	130616	15	£7.12

(All Prices Exclude VAT)
