1 Wire Hose 1/8" - 1"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

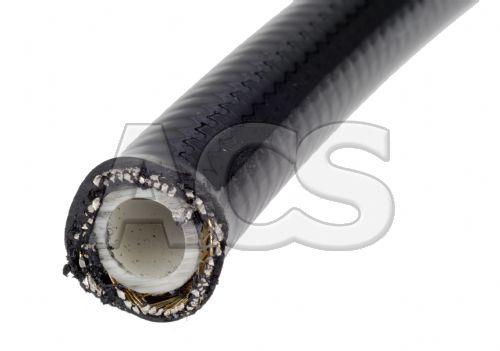

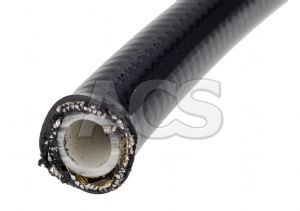

Thermoplastic elastomer tube with a single steel wire braid reinforcement for medium pressure hydraulic lines 100 to 350 bar.

Suitable for Hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids.

Other sizes available on request.

Pressure shown is maximum operating pressure with 4:1 safety factor.

Technical Details

Temperature:	-40 to +100 Deg C
	not to exceed +70 Deg C for Air and Water based fluids

Material:
Core:	Thermoplastic Elastomer
Reinforcement:	Single steel wire braid
Cover:	Polyurethane

Colour:	Black

Application Standards:	exceeds SAE/EN one wire braid hose specifications.

Manufacturers ref:	PH348

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Size (1/16”)	ID (mm)	OD (mm)	Pressure	Order Code	Available	Each
PH348 - 1 Wire Hose Per Metre
	-2	3.2mm	6.9mm	350 bar	130567	0	£4.52
	-3	4.8mm	9.7mm	300 bar	130568	0	£3.47
	-4	6.4mm	11.7mm	275 bar	130569	0	£4.63
	-5	8.0mm	13.6mm	240 bar	130570	0	£5.48
	-6	9.6mm	15.2mm	220 bar	130571	35	£6.13
	-8	12.8mm	18.4mm	175 bar	130572	0	£7.58
	-10	16.1mm	22.2mm	140 bar	130573	0	£9.78
	-12	19.2mm	25.7mm	115 bar	130574	0	£16.65
Ferrule
	-2	-	-	-	130601	18	£3.07
	-3	-	-	-	130602	145	£1.23
	-4	-	-	-	130603	157	£1.12
	-5	-	-	-	130604	121	£1.23
	-8	-	-	-	130606	169	£1.97
	-6	-	-	-	130605	173	£1.32
	-10	-	-	-	130607	33	£3.27
	-12	-	-	-	130608	63	£3.58
	-16	-	-	-	130609	33	£6.45

(All Prices Exclude VAT)
