R8 Hose 1/8" - 1"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Thermoplastic elastomer tube with one braid of aramid fibre reinforcement for high pressure hydraulic lines 140 to 420 bar.

Suitable for Hydraulic application with increased resistance to abrasion.

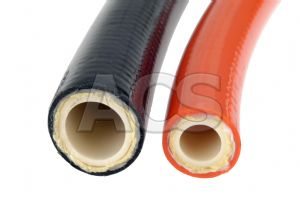

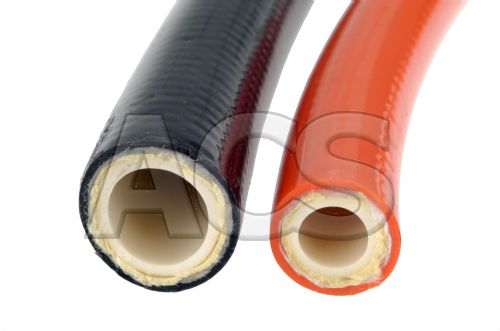

Available in standard and non conductive versions.

Other sizes available on request.

Pressure shown is maximum operating pressure with 4:1 safety factor.

Technical Details

Temperature:	-40 to +100 Deg C
	not to exceed +70 Deg C for Air and Water based fluids

Material:
Core:	Thermoplastic Elastomer
Reinforcement:	1 braid of aramid fibre
Cover:	Pin Pricked Polyurethane

Colour:
Standard:	Black
Non Conductive:	Orange

Application Standards:	SAE 100 R8 / DIN EN 855

Manufacturers ref:	PH149 (standard)
	PH152 (non conductive)

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Size (1/16”)	ID (mm)	OD (mm)	Pressure	Order Code	Available	Each
PH149 - R8 Standard Hose
	-2	3.2mm	8.1mm	420 bar	130549	0	£5.12
	-3	4.8mm	10.3mm	350 bar	130550	60	£6.38
	-4	6.4mm	12.4mm	350 bar	130551	36	£7.67
	-5	8.0mm	14.2mm	300 bar	130552	0	£9.60
	-6	9.5mm	15.7mm	280 bar	130553	60	£12.38
	-8	12.7mm	19.3mm	245 bar	130554	3	£13.22
	-12	19.0mm	26.4mm	165 bar	130556	0	£19.38
	-16	25.4mm	33.3mm	140 bar	130557	0	£25.68
PH152 - Non Conductive Hose
	-2	3.2mm	8.1mm	420 bar	130558	0	£4.52
	-3	4.8mm	10.3mm	350 bar	130559	0	£5.67
	-4	6.4mm	12.4mm	350 bar	130560	0	£8.05
	-6	9.6mm	15.7mm	280 bar	130562	0	£14.12
	-8	12.8mm	19.3mm	245 bar	130563	0	£15.25
	-10	16.1mm	23.1mm	200 bar	130564	0	£16.37
	-12	19.2mm	26.4mm	165 bar	130565	0	£20.35
	-16	25.5mm	33.3mm	140 bar	130566	0	£26.98
Ferrule - Mild Steel
	-2	-	-	-	130601	18	£3.07
	-3	-	-	-	130602	145	£1.23
	-4	-	-	-	130603	157	£1.12
	-5	-	-	-	130604	121	£1.23
	-6	-	-	-	130605	173	£1.32
	-8	-	-	-	130606	169	£1.97
	-10	-	-	-	130607	33	£3.27
	-12	-	-	-	130608	63	£3.58
	-16	-	-	-	130609	33	£6.45
Ferrule - Stainless Steel
	-3	-	-	-	131451	0	£17.27
	-4	-	-	-	131452	0	£16.78
	-5	-	-	-	131453	0	£17.02
	-6	-	-	-	131454	6	£17.27
	-8	-	-	-	131455	13	£18.87
	-10	-	-	-	131457	4	£27.98
	-12	-	-	-	131456	4	£42.62

(All Prices Exclude VAT)
