Description

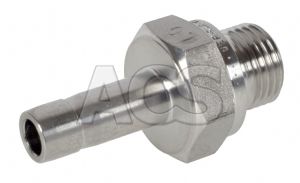

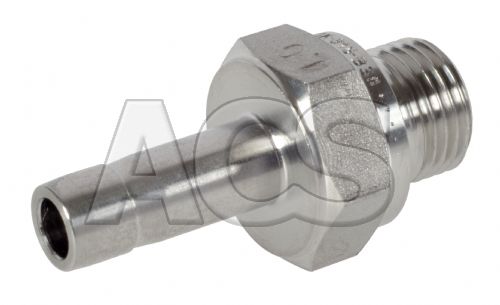

Tube To Pipe Adaptor Stainless Steel Twin Ferrule Compression fitting with male parallel BSP threads (1/8" - 1/2") suitable for metric and imperial OD tube sizes 6-22mm and 1/8" - 1/2".

Letlok range manufactured by Hamlet and suitable for a wide range of applications in industry.

Assembly instructions are included in the datasheets - see links.

At ACS we specialise in compression fittings for a wide range of applications. Whatever your requirements please contact us and a member of our team will be happy to help you.

Technical Details

Manufacturers Ref:

739LMG

Datasheets

Male Tube To Pipe Adaptor BSPP Metric & Imperial datasheet

Let-Lok_739LMG

Let-Lok_General

Prices (Click quantity for more availability info)

	Tube OD	Male Thread	Order Code	Available	Each
739LMG Male Tube To Pipe Adaptor BSPP - Metric
	6mm	G1/8"	142108	4	£8.91
	6mm	G1/4"	142109	0	£9.57
	8mm	G1/4"	142110	0	£13.05
	8mm	G3/8"	142111	0	£12.25
	10mm	G3/8"	142112	0	£15.37
	10mm	G1/2"	142113	0	£17.69
	12mm	G1/4"	142114	0	£19.11
	12mm	G3/8"	142115	0	£20.40
	12mm	G1/2"	142116	0	£21.39
	16mm	G1/2"	142117	0	£26.31
	22mm	G3/8"	142118	0	£73.13
739LMG Male Tube To Pipe Adaptor BSPP - Imperial
	1/8"	G1/8"	142119	0	£10.08
	1/8"	G1/4"	142120	0	£11.43
	1/4"	G1/8"	142121	0	£8.91
	1/4"	G1/4"	142122	0	£9.57
	1/4"	G3/8"	142123	0	£12.49
	3/8"	G1/8"	142124	0	£11.05
	3/8"	G1/4"	142125	0	£12.65
	3/8"	G3/8"	142126	0	£14.93
	3/8"	G1/2"	142127	0	£17.69
	1/2"	G1/4"	142128	0	£19.11
	1/2"	G3/8"	142129	0	£20.01
	1/2"	G1/2"	142130	0	£21.39

(All Prices Exclude VAT)
