Male Tube To Pipe Adaptor BSPT Metric & Imperial

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

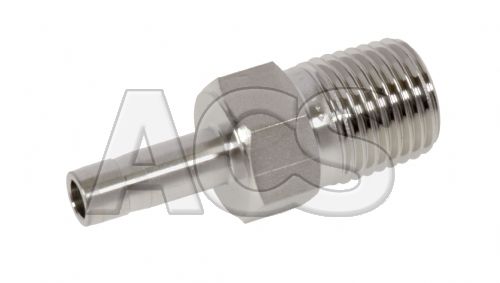

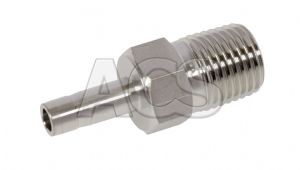

Tube To Pipe Adaptor Stainless Steel Twin Ferrule Compression fitting with male tapered BSP threads (1/8" - 1") suitable for metric and imperial OD tube sizes 6-12mm and 1/8" - 1".

Letlok range manufactured by Hamlet and suitable for a wide range of applications in industry.

Assembly instructions are included in the datasheets - see links.

At ACS we specialise in compression fittings for a wide range of applications. Whatever your requirements please contact us and a member of our team will be happy to help you.

Technical Details

Manufacturers Ref:

739LMR

Datasheets

Male Tube To Pipe Adaptor BSPT Metric & Imperial datasheet

Let-Lok_739LMR

Let-Lok_General

Prices (Click quantity for more availability info)

	Tube OD	Male Thread	Order Code	Available	Each
739LMR Male Tube To Pipe Adaptor BSPT - Metric
	6mm	R1/8"	142086	0	£6.85
	6mm	R1/4"	142087	0	£7.35
	8mm	R1/8"	142088	0	£9.25
	8mm	R1/4"	142089	0	£9.20
	10mm	R1/4"	142090	0	£9.73
	10mm	R3/8"	142091	0	£11.83
	12mm	R1/4"	142092	0	£14.69
	12mm	R3/8"	142093	0	£15.67
	12mm	R1/2"	142094	0	£16.45
739LMR Male Tube To Pipe Adaptor BSPT - Imperial
	1/8"	R1/8"	142095	0	£7.76
	1/4"	R1/8"	142096	0	£6.85
	1/4"	R1/4"	142097	0	£7.35
	1/4"	R3/8"	142098	0	£9.61
	1/4"	R1/2"	142099	0	£12.79
	3/8"	R1/4"	142100	0	£9.73
	3/8"	R3/8"	142101	0	£11.47
	3/8"	R1/2"	142102	0	£13.63
	1/2"	R1/4"	142103	0	£14.69
	1/2"	R3/8"	142104	0	£15.40
	1/2"	R1/2"	142105	0	£16.45
	3/4"	R1/2"	142106	0	£24.08
	1"	R1"	142107	0	£44.11

(All Prices Exclude VAT)
