Description

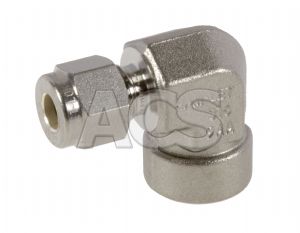

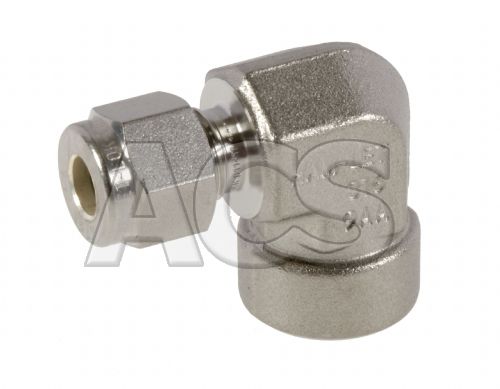

Elbow Stainless Steel Twin Ferrule Compression fitting with female NPT threads (1/8" - 1") suitable for metric and imperial OD tube sizes 6-12mm and 1/8" - 1".

Letlok range manufactured by Hamlet and suitable for a wide range of applications in industry.

Each fitting is supplied complete with compression nuts and front and rear ferrules. Spare nuts and ferrules can be ordered separately if required - see related products section.

Assembly instructions are included in the datasheets - see links.

At ACS we specialise in compression fittings for a wide range of applications. Whatever your requirements please contact us and a member of our team will be happy to help you.

Technical Details

Manufacturers Ref:

770L

Datasheets

Female Elbow NPT Metric & Imperial datasheet

Let-Lok_770L

Let-Lok_General

Prices (Click quantity for more availability info)

	Tube OD	Female Thread	Order Code	Available	Each
770L Female Elbow NPT - Metric
	6mm	1/8" NPT	141836	0	£20.76
	6mm	1/4" NPT	141837	0	£23.57
	8mm	1/4" NPT	141838	0	£37.69
	10mm	1/4" NPT	141839	0	£24.25
	10mm	1/2" NPT	141840	0	£41.45
	12mm	1/4" NPT	141841	0	£31.21
	12mm	1/2" NPT	141842	0	£44.63
770L Female Elbow NPT - Imperial
	1/8"	1/8" NPT	141843	0	£23.79
	1/8"	1/4" NPT	141844	0	£27.89
	1/4"	1/8" NPT	141845	0	£20.76
	1/4"	1/4" NPT	141846	1	£23.57
	1/4"	3/8" NPT	141847	0	£34.40
	3/8"	1/8" NPT	141848	0	£23.07
	3/8"	1/4" NPT	141849	0	£24.25
	3/8"	3/8" NPT	141850	0	£27.28
	3/8"	1/2" NPT	141851	0	£40.28
	1/2"	1/4" NPT	141852	0	£31.21
	1/2"	3/8" NPT	141853	0	£33.05
	1/2"	1/2" NPT	141854	0	£44.63
	3/4"	1/2" NPT	141855	0	£56.52
	3/4"	3/4" NPT	141856	0	£89.13
	1"	1" NPT	141857	0	£142.95

(All Prices Exclude VAT)
