Female Stud Metric Light (L) & Heavy (S)

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

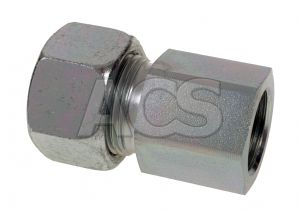

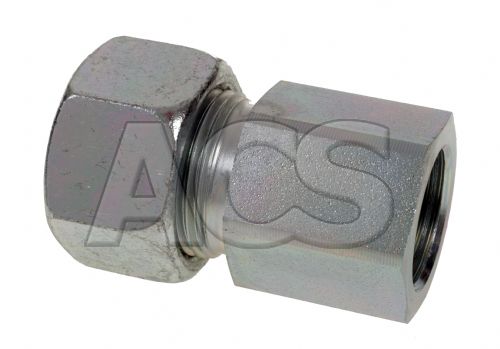

Stud coupling with Metric female thread to suit Metric Light (L) and Heavy (S) OD tubes.

Each fitting includes 1 nut and ferrule. Spare nuts and ferrules can be ordered separately (see related products).

Conforms to DIN 2353.

Technical Details

Material:

Carbon steel

Datasheets

Female Stud Metric Light (L) & Heavy (S) datasheet

Click Here

Prices (Click quantity for more availability info)

	EMB Ref	OD (mm)	Thread	Order Code	Available	Each
Metric Light (L)
	AI 6-L/M 10 x1	6mm	M10 x 1	133787	0	£11.07
	AI 8-L/M 12 x1.5	8mm	M12 x 1.5	133788	0	£12.88
	AI 10-L/M 14 x1.5	10mm	M14 x 1.5	133789	0	£13.62
	AI 12-L/M 16 x1.5	12mm	M16 x 1.5	133790	0	£16.58
	AI 15-L/M 18 x1.5	15mm	M18 x 1.5	133791	1	£17.28
	AI 18-L/M 22 x1.5	18mm	M22 x 1.5	133792	0	£21.58
	AI 22-L/M 26 x1.5	22mm	M26 x 1.5	133793	0	£27.72
Metric Heavy (S)
	AI 6-S/M 12 x1,5	6mm	M12 x 1.5	133794	0	£14.77
	AI 8-S/M 14 x1,5	8mm	M14 x 1.5	133795	0	£16.33
	AI 10-S/M 16 x1,5	10mm	M16 x 1.5	133796	0	£20.95
	AI 12-S/M 18 x1,5	12mm	M18 x 1.5	133797	0	£21.12
	AI 14-S/M 20 x1,5	14mm	M20 x 1.5	133798	0	£33.77
	AI 16-S/M 22 x1,5	16mm	M22 x 1.5	133799	0	£28.38
	AI 20-S/M 27 x2	20mm	M27 x 2	133800	0	£33.32

(All Prices Exclude VAT)
