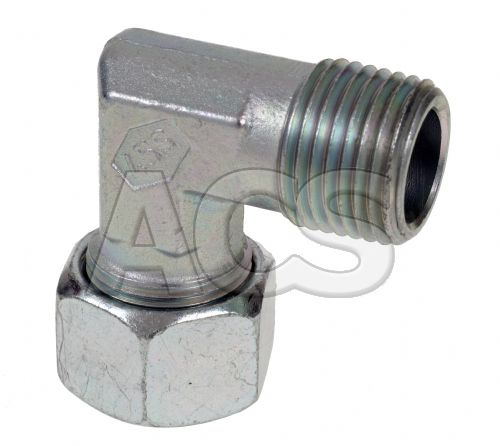

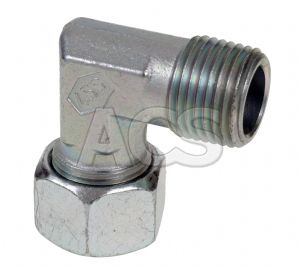

Stud Elbow Male NPT Metric Light (L) & Heavy (S)

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Stud Elbow with NPT male thread to suit Metric Light Light (LL), Light (L) and Heavy (S) OD tubes.

Each fitting includes 1 nut and ferrule. Spare nuts and ferrules can be ordered separately (see related products).

Conforms to DIN 2353.

Technical Details

Material:

Carbon steel

Datasheets

Stud Elbow Male NPT Metric Light (L) & Heavy (S) datasheet

Click Here

Prices (Click quantity for more availability info)

	EMB Ref	OD (mm)	Thread (NPT)	Order Code	Available	Each
Metric Light Light (LL)
	B 4-LL/NPT	4mm	1/8"	133672	0	£8.60
	B 6-LL/NPT	6mm	1/8"	133673	0	£8.50
	B 8-LL/NPT	8mm	1/8"	133674	0	£9.57
Metric Light (L)
	B 6-L/NPT	6mm	1/8"	133675	0	£8.27
	B 6-L/NPT 1/4"	6mm	1/4"	133676	0	£11.77
	B 8-L/NPT	8mm	1/4"	133677	0	£8.93
	B 10-L/NPT	10mm	1/4"	133678	0	£9.87
	B 12-L/NPT 1/4"	12mm	1/4"	133679	0	£13.83
	B 12-L/NPT	12mm	3/8"	133680	2	£12.08
	B 10-L/NPT 1/2"	12mm	1/2"	133681	0	£20.58
	B 15-L/NPT	15mm	1/2"	133682	1	£15.93
	B 15-L/NPT	18mm	1/2"	133683	0	£23.05
	B 22-L/NPT	22mm	3/4"	133684	0	£30.12
	B 28-L/NPT	28mm	1"	133685	0	£49.37
	B 35-L/NPT	35mm	1 1/4"	133686	0	£67.30
	B 42-L/NPT	42mm	1 1/2"	133687	0	£99.48
Metric Heavy (S)
	6-S/NPT	6mm	1/4"	133688	0	£10.13
	8-S/NPT	8mm	1/4"	133689	0	£11.33
	10-S/NPT	10mm	3/8"	133690	0	£12.33
	12-S/NPT	12mm	3/8"	133691	0	£13.78
	14-S/NPT	14mm	1/2"	133692	0	£26.05
	16-S/NPT	16mm	1/2"	133693	0	£20.85
	20-S/NPT	20mm	3/4"	133694	0	£32.97
	25-S/NPT	25mm	1"	133695	0	£61.63
	30-S/NPT	30mm	1 1/4"	133696	0	£72.22

(All Prices Exclude VAT)
