SAE Code 61 Flange 6K

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

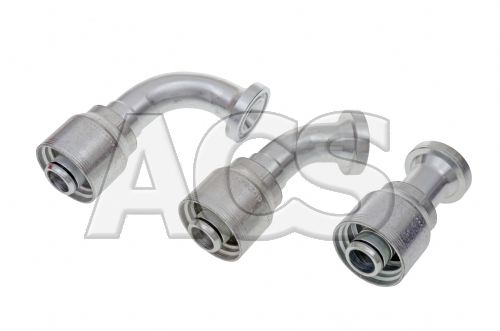

One piece, no skive fitting from the Aeroquip 4S range suitable for 4 wire hose.

This fitting is supplied without an O Ring on the flange end. For O Ring in NBR (for mineral based hydraulic fluid) or EPDM (Phosphate ester based hydraulic fluid) see related products section.

This fitting is supplied with an NBR O Ring as standard on the insert end (-12 & -16 only). EPDM O ring suitable for skydrol and phosphate ester based hydraulic fluids can be ordered separately - see related products section.

Technical Details

Manufacturers Ref:
Straight:	FH
45 Degree:	FHA
90 Degree:	FHB

Prices (Click quantity for more availability info)

	Flange	Hose Size (1/16”)	Order Code	Available	Each
Flange Straight (FH)
	3/4"	-12	139284	5	£21.27
	1"	-12	139285	0	£34.72
	1"	-16	139286	6	£29.97
	1 1/4"	-16	139287	0	£45.03
	1 1/4"	-20	139288	0	£51.68
	1 1/2"	-24	139289	0	£110.35
Flange 45 Degree (FHA)
	3/4"	-12	139290	0	£36.13
	1"	-12	139291	0	£57.43
	1"	-16	139292	3	£53.43
	1 1/4"	-16	139293	0	£71.28
	1 1/4"	-20	139294	0	£82.33
	1 1/2"	-24	139295	0	£169.82
Flange 90 Degree (FHB)
	3/4"	-12	139296	1	£35.37
	1"	-12	139297	0	£54.35
	1"	-16	139298	5	£50.78
	1 1/4"	-16	139299	4	£73.17
	1 1/4"	-20	139300	0	£76.28

(All Prices Exclude VAT)
