Legris LF3800 Reducer Push in fitting

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

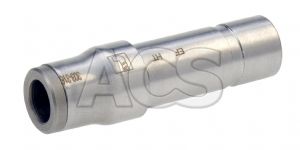

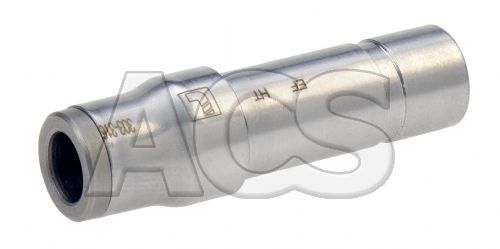

Legris LF3800 stainless steel push in reducer available with male push in fittings to suit metric outside diameter tube.

Can be used with polymer and grooved stainless steel tubing.

Technical Details

Working Pressure:	Vacuum to 30 bar
Working Temperature:	-20 to +150 Deg C
Material:	316

Datasheets

Legris LF3800 Reducer Push in fitting datasheet

Click Here

Prices (Click quantity for more availability info)

	Push in OD (mm)	Stem OD (mm)	Order Code	Available	Each
3866
	4	6	128678	5	£23.37
	4	8	128679	0	£24.11
	6	8	128680	1	£30.29
	6	10	128681	0	£29.53
	8	10	128682	0	£31.93
	8	12	128683	1	£35.79
	10	12	128684	1	£44.47

(All Prices Exclude VAT)
