You are here - All Product > Tubing / Hose - Low Pressure > Air hose assemblies - BSP Ends

Air hose assembly, Codeflex Suprene, BSPT Ends

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

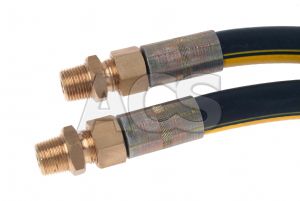

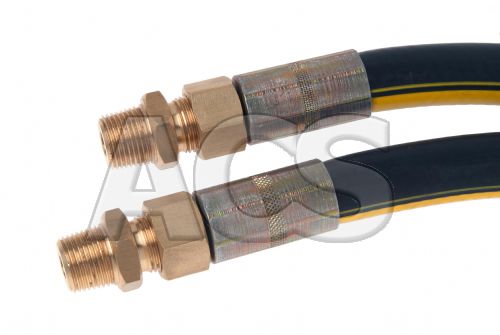

Air hose assembly made from Codeflex Suprene (rubber alloy) hose with BSP Taper male ends. Designed for heavier duty applications.

Each end consists of a female swivel fitting and a male/male cone/taper adaptor.

Available with 6mm bore (1/4" BSPT ends), 10mm bore (3/8" BSPT ends) or 12.5mm bore (1/2" BSPT ends).

Technical Details

Pressure:

20 bar

Datasheets

Air hose assembly, Codeflex Suprene, BSPT Ends datasheet

Click Here

Prices (Click quantity for more availability info)

Bore	Thread	Length	Order Code	Available	Each
6mm	R1/4"	0.75 metres	104775	7	£25.45
6mm	R1/4"	1.5 metres	104776	10	£27.33
6mm	R1/4"	2.5 metres	104777	7	£29.83
6mm	R1/4"	5.0 metres	104778	3	£36.18
6mm	R1/4"	10.0 metres	104779	3	£48.73
6mm	R1/4"	15.0 metres	104780	0	£61.35
10mm	R3/8"	0.75 metres	104781	11	£27.58
10mm	R3/8"	1.5 metres	104782	10	£29.83
10mm	R3/8"	2.5 metres	104783	9	£32.87
10mm	R3/8"	5.0 metres	104784	5	£40.45
10mm	R3/8"	10.0 metres	104785	1	£55.62
10mm	R3/8"	15.0 metres	104786	2	£70.68
12.5mm	R1/2"	0.75 metres	104787	4	£36.93
12.5mm	R1/2"	1.5 metres	104788	5	£40.12
12.5mm	R1/2"	2.5 metres	104789	11	£44.47
12.5mm	R1/2"	5.0 metres	104790	4	£55.18
12.5mm	R1/2"	10.0 metres	104791	2	£76.87
12.5mm	R1/2"	15.0 metres	104792	3	£98.35

(All Prices Exclude VAT)
