Description

Industrial multi purpose and flexible PVC hose reinforced with a polyester fibre. Supplied in 30m and 100m coils. Made from low toxicity materials and suitable for food use. Manufactured to comply with BS6066 & ISO 5774.

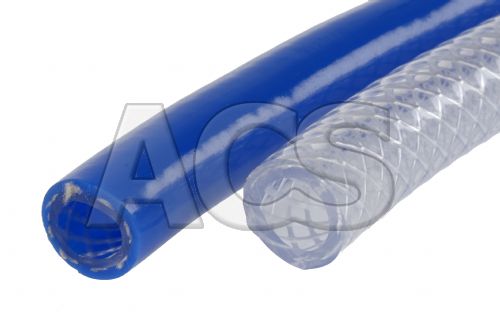

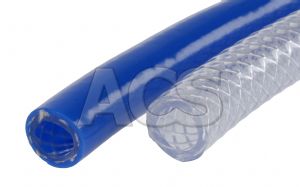

Both clear and blue are shown below. Other colours are available on request.

Working pressure shown is for a 4:1 safety factor @ 23�C

Available on request: other coil lengths

Technical Details

Temperature range:	-15 deg C to +60 deg C
Mftrs ref:	CR series

Bore	Max pressure (4:1 safety factor)
3.0mm	32 bar
5.0mm	27 bar
6.3mm	16 bar
8.0mm	16 bar
10.0mm	15 bar
12.5mm	15 bar
16.0mm	12 bar
19.0mm	10 bar
25.0mm	10 bar
32.0mm	10 bar
38.0mm	10 bar
50.0mm	8 bar

Datasheets

Reinforced PVC - Codeflex CR Series 3-51mm datasheet

Click Here

Prices (Click quantity for more availability info)

	Inside dia	Outside dia	Order Code	Available	Each
30 metre coils (clear)
	1/8" (3.0mm)	8.0mm	104198	1	£60.08
	3/16" (5.0mm)	10.0mm	104191	2	£56.65
	1/4" (6.3mm)	11.5mm	104013	8	£32.02
	5/16" (8.0mm)	13.5mm	104014	4	£42.25
	3/8" (10.0mm)	16.0mm	104015	9	£48.72
	1/2" (12.5mm)	18.5mm	104016	9	£48.72
	5/8" (16.0mm)	23.0mm	104192	6	£90.22
	3/4" (19.0mm)	26.0mm	104193	7	£110.07
	1" (25.0mm)	33.0mm	104194	6	£145.68
	1 1/4" (32.0mm)	42.0mm	104195	1	£235.48
	1 1/2" (38.0mm)	48.0mm	104196	2	£274.17
	2" (50.0mm)	62.0mm	104197	2	£412.88
30 metre coils (blue)
	1/4" (6.3mm)	11.5mm	137621	2	£32.02
	5/16" (8.0mm)	13.5mm	137622	0	£42.25
	3/8" (10.0mm)	16.0mm	137623	3	£48.72
	1/2" (12.5mm)	18.5mm	137624	4	£53.58
	3/4" (19.0mm)	26.0mm	137625	4	£110.07
	1" (25.0mm)	33.0mm	137626	1	£145.68
100 metre coils (clear)
	1/4" (6.3mm)	11.5mm	104691	1	£106.80
	5/16" (8.0mm)	13.5mm	104692	1	£140.82
	3/8" (10.0mm)	16.0mm	104693	1	£162.98
	1/2" (12.5mm)	18.5mm	104694	2	£164.32
	3/4" (19.0mm)	26.0mm	104696	1	£366.77
	1" (25.0mm)	33.0mm	104697	2	£485.68

(All Prices Exclude VAT)
