T172 20 bar Heavy Duty Air Hose 10 - 102mm Id

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

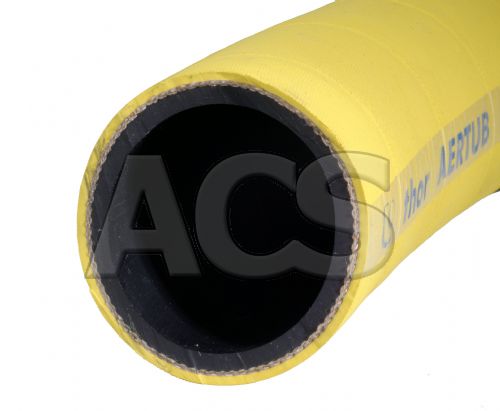

T172 20 bar black or yellow air hose manufacftured to BS BS EN ISO2398 + BS 5118/2. Available in 61m coils.

Id sizes 10mm, 16mm and 102mm are available in black only.

Available on request:
Hose with Id size 152mm in Black
Different length coils

Technical Details

Cover:	Black or yellow SBR, with good abrasion, weather
	and ageing resistance.
Branding:	BS EN ISO 2395 + BS5118/2 Air Hose 20 Bar.
Reinforcement:	High tensile synthetic piles.
Tube:	Black SBR, oil mist resistant.
Temperature:	-25 to +70 Degree C
Working Pressure:	20 bar
Burst Pressure:	64 bar
Safety Factor:	3:1 Minimum

Datasheets

T172 20 bar Heavy Duty Air Hose 10 - 102mm Id datasheet

Click Here

Prices (Click quantity for more availability info)

	ID (mm)	OD (mm)	Order Code	Available	Each
T172 - Black
	10mm	20mm	126837	0	£895.33
	13mm	23mm	126838	0	£616.87
	16mm	26mm	126839	0	£928.17
	19mm	30mm	126840	0	£655.43
	25mm	37mm	126841	0	£729.68
	32mm	46mm	126842	0	£933.88
	38mm	52mm	126843	0	£1,143.80
	51mm	66mm	126844	0	£1,306.58
	63mm	79mm	126845	0	£2,694.55
	76mm	92mm	126846	0	£2,924.45
	102mm	119mm	126847	0	£4,538.03
T172 - Yellow
	13mm	23mm	126848	0	£1,186.63
	19mm	30mm	126849	0	£655.43
	25mm	37mm	126850	0	£729.68
	32mm	46mm	126851	0	£1,339.42
	38mm	52mm	126852	0	£1,143.80
	51mm	66mm	126853	0	£1,306.58
	63mm	79mm	126854	0	£2,694.55
	76mm	92mm	126855	0	£2,924.45

(All Prices Exclude VAT)
