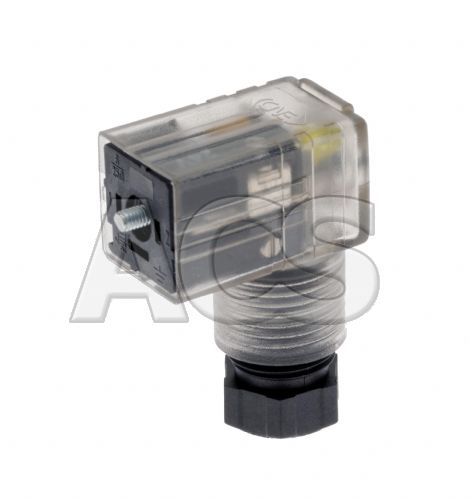

Cable Plug/DIN Plug 43650C

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

DIN 43650-C plugs with 8mm contact spacing.

Plugs with V5 internal circuits have bipolar LED indicators confirming supply voltage plus varistor to give overvoltage protection to the source and load.

Technical Details

Housing:	black/transparent
Contacts:	screw with conductor protection
Number of poles:	2 plus earth
Contact spacing:	8mm
Cable entry:	PG7 (3-6.5mm cable)
Gasket:	NBR profile (other types on request)
LED Colour:	Amber
Fixing screw:	M2.5 x 28
Earth position:	H 6 (next to cable entry)
Protection Class:	IP 65 (mated)
Max conductor section:	0.75mm sq.

Datasheets

Cable Plug/DIN Plug 43650C datasheet

43650C

Internal Circuits

Prices (Click quantity for more availability info)

	Contacts	Cable entry	Voltage	Order Code	Available	Each
Internal Circuit 00
	2 pin plus earth	PG7	1-250V AC/DC	121235	20	£2.37
Internal Circuit V5 with LED and varistor
	2 pin plus earth	PG7	24V AC/DC	121236	9	£10.45
	2 pin plus earth	PG7	115V AC/DC	121237	0	£10.45
	2 pin plus earth	PG7	230V AC/DC	121238	0	£13.07

(All Prices Exclude VAT)
