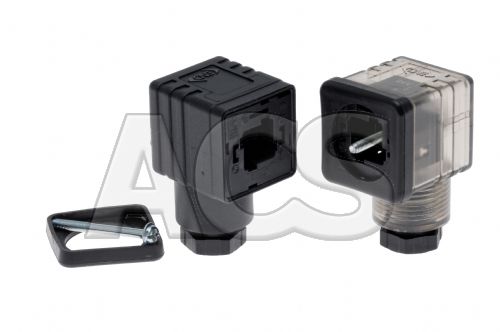

Cable Plug/DIN Plug 43650A (ISO 4400)

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

DIN 43650A (ISO 4400) plugs with 18mm contact spacing. Also known as Form A din plug.

Plugs with V5 internal circuits have bipolar LED indicators confirming supply voltage plus varistor to give overvoltage protection to the source and load.

Plugs with R5 internal circuits have full wave bridge rectifier plus LED indicator confirming supply voltage plus varistor to protect the device from supply overvoltages.

Technical Details

Housing:	black/transparent
Contacts:	screw with conductor protection
Number of poles:	2 or 3 plus earth
Contact spacing:	18mm
Cable entry:	PG9 (4-8mm cable) or PG11 (5-10mm cable)
Gasket:	NBR profile (other types on request)
LED Colour:	Amber
Fixing screw:	M3 x 32
Earth position:	H 12 (opposite to cable entry)
Protection Class:	IP 65 (mated)
Max conductor section:	1.5mm sq.
Conforms to:	EN 175301-803
	DIN 43650
	ISO 4400

Datasheets

Cable Plug/DIN Plug 43650A (ISO 4400) datasheet

43650_A

Internal Circuits

Prices (Click quantity for more availability info)

	Contacts	Cable entry	Voltage	Order Code	Available	Each
Internal Circuit 00
	2 pin plus earth	PG9	1-250V AC/DC	121221	30	£3.23
	2 pin plus earth	PG11	1-250V AC/DC	121222	16	£2.28
	3 pin plus earth	PG9	1-250V AC/DC	121223	8	£2.76
Internal Circuit V5 with LED and varistor
	2 pin plus earth	PG9	24V AC/DC	121224	18	£8.49
	2 pin plus earth	PG9	115V AC/DC	121225	11	£8.96
	2 pin plus earth	PG9	230V AC/DC	121226	6	£8.49
Internal Circuit R5 with rectifier, LED & varistor
	2 pin plus earth	PG9	24V AC	121227	12	£13.73
	2 pin plus earth	PG9	115V AC	121228	4	£8.76
	2 pin plus earth	PG9	230V AC	121229	2	£8.76

(All Prices Exclude VAT)
