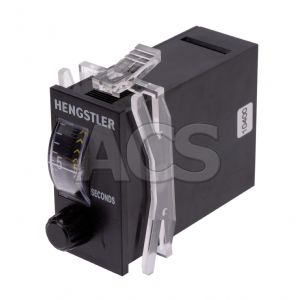

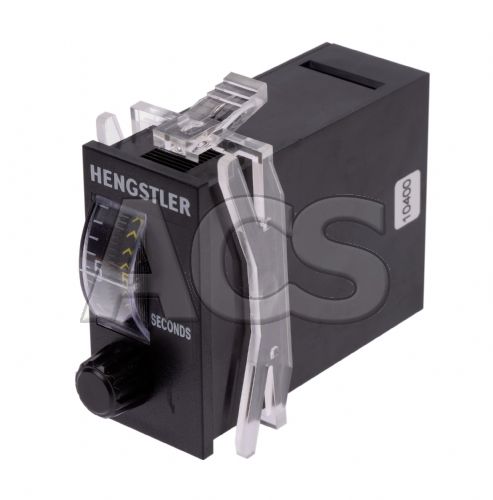

Impulse Automation Series 51 Mini Timer

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

A range of fully pneumatic timers used to carry out time dependent signal control functions in pneumatic control systems or installations.

This timer is panel mounted or din rail mounted and availabe in three ranges up to 300 seconds.

The on delay mini timer is based on a 3/2 normally closed valve.and off delay on a 3/2 normally closed valve Reset is achieved by interrupting the control air to port 1 for 200ms and the timer is then automatically reset to its preset value.

A protective cover with or without a lock can be ordered separately as well as a Din rail adaptor and socket with M5 or 4mm push in connections.

Technical Details

Temperature:	0 - +60 deg C
Pressure:	2 - 6 bar
Connections:	M5
Air quality:	Oil free, clean & dry

Datasheets

Impulse Automation Series 51 Mini Timer datasheet

Series 51 Timer On

Series 51 Timer Off

Prices (Click quantity for more availability info)

	Mftrs Part No	Range	Timing	Order Code	Available	Each
Timer - On Delay (Panel or DIN Rail Mounting)
	51.020.33.00	0.2 - 3 seconds	Normally Closed	117648	1	£241.35
	51.020.03.00	2 - 30 seconds	Normally Closed	117647	1	£199.13
	51.020.34.00	8 - 120 seconds	Normally Closed	147151	0	£209.59
	51.020.30.00	20 - 300 seconds	Normally Closed	117649	1	£179.01
Timer - Off Delay (Panel Mount Only)
	51.021.03.00	20 - 300 seconds	Normally Open	147152	0	£211.09
	51.021.30.00	20 - 300 seconds	Normally Open	147153	0	£189.76
Accessories ((Panel or DIN Rail Mounting)
	1.405.611	Protective cover with knob	-	117650	1	£64.72
	1.405.612	Protective cover with lock	-	117651	1	£64.11
Accessories (DIN Rail Mounting Only)
	51.031.00.00	Socket for DIN rail adaptor (M5)	-	117653	2	£84.03
	51.031.00.01	Socket for DIN rail adaptor (4mm)	-	117654	1	£110.63

(All Prices Exclude VAT)
