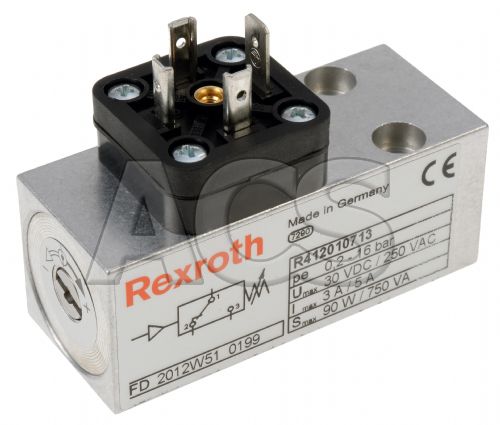

Aventics Series PM1 Pressure Switch

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Adjustable pressure switch suitable for compressed air or hydraulic oil. Available with pressures setting from 0.2 to 16 bar. This switch has changeover contacts so it can be wired normally open or normally closed. Includes cable connecting plug.

Technical Details

Connection:	1/4" BSP Female
Switching Frequency:	1.5 Hz
Temperature:	-20 deg C to +80 deg C
Max voltage:	250V
Power:	3A/5A DC/AC
Protection:	IP65
Housing:	Aluminium
Seal:	acrylonitrile butadiene caoutchouc
Manufacturers Ref:	R412010713

Datasheets

Aventics Series PM1 Pressure Switch datasheet

Click Here

Prices (Click quantity for more availability info)

	Pressure range	Order Code	Available	Each
Pressure Switch
	0.2 to 16 bar	126812	2	£158.90
Spare Parts
	Cable Plug	139731	0	£28.51

(All Prices Exclude VAT)
