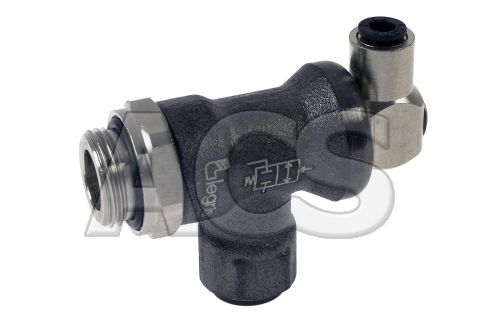

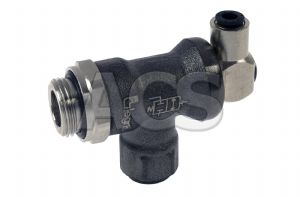

Blocking fitting

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Can be used on a pneumatic cylinder to lock the piston by simultaneously cutting off the supply and exhaust.
‘Fail safe’ in that a signal authorising movement must be presented before the cylinder can move.
Available with push-in fittings or threaded connections.

Technical Details

Manufacturers Ref
Push in:	7880
Threaded:	7881

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Signal	Main	Cylinder	Order Code	Available	Each
Push in
	4mm	6mm	1/8" BSP	111087	2	£73.73
	4mm	6mm	1/4" BSP	111081	2	£81.10
	4mm	8mm	1/4" BSP	111082	2	£82.21
	4mm	8mm	3/8" BSP	111083	0	£101.37
	4mm	10mm	3/8" BSP	111088	2	£104.24
	4mm	12mm	1/2" BSP	111089	2	£112.74
Threaded
	M5	1/4" BSP	1/4" BSP	111084	2	£73.73
	M5	3/8" BSP	3/8" BSP	111085	0	£101.37
	M5	1/2" BSP	1/2" BSP	111086	2	£112.73

(All Prices Exclude VAT)
