Direct Mounted CD12 3 & 5 port G1/2"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

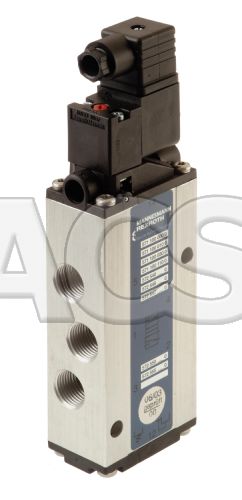

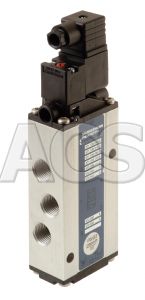

A range of 3 & 5 port air pilot and solenoid operated spool valves with 1/2" BSP Connection. Connection ports are in the valve body. Solenoid version has manual override fitted to the solenoid.

Intended for use as a Power valve for cylinders and air motors.

This range of valves is pre lubricated and is designed for operation without additional lubrication in the air supply.

For solenoid valves solenoid (to required voltage) and cable connecting plug must be ordered separately.

Repair kits can be ordered separately.

Technical Details

Temperature:	-15 to +50 deg C
Working pressure:	2 - 10 bar
Flow:	4000 l/min
Solenoid:	DC - 2.64W
	AC - 4.6VA
Connection:	1/2" BSP (Main)
	1/8" BSP (Pilot)

Prices (Click quantity for more availability info)

	Type		Order Code	Available	Each
Valves - Pilot operated
	3/2	Pilot/Spring	106951	0	£310.03
	5/2	Pilot/Spring	106952	0	£365.78
	5/2	Pilot/Pilot	106953	0	£366.27
Valves - Solenoid operated
	3/2	Solenoid/Spring	106954	3	£291.38
	5/2	Solenoid/Spring	106955	1	£380.17
	5/2	Solenoid/Solenoid	106964	0	£452.77
Solenoid operator
	-	24V DC	106957	2	£113.42
	-	24V AC	106958	2	£119.72
	-	110V AC	106959	2	£141.27
	-	230V AC	106960	1	£113.42
Cable plugs (DIN43650A)
	-	LED 24V	121224	18	£8.49
	-	LED 115V	121225	11	£8.96
	-	LED 230V	121226	6	£8.49
Repair kits
	5/2	Sol/Spring	106962	0	£322.94
	5/2	Not sol/spring	106963	1	£243.97

(All Prices Exclude VAT)
