Solenoid valve 3/2 5/2 5/3 1/8" 1/4" & 1/2"

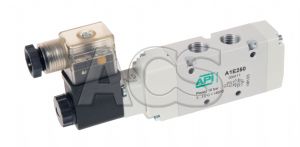

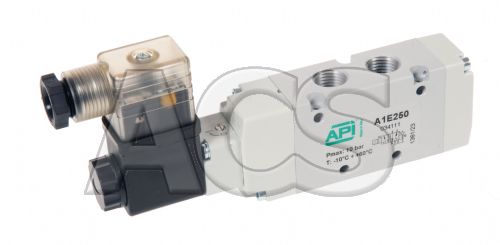

Series A1 Solenoid valves for compressed air/pneumatic applications.

This range of spool valves has an aluminium body and is offered in 1/8" 1/4" & 1/2" BSP port sizes and is suitable for a wide range of applications in industry.

Valves and coils and cable connecting plugs must be ordered separately. 1 coil & plug for solenoid/spring versions and 2 coils & plugs for all other versions.

The valves listed here are all internally piloted - externally piloted valves (for low pressure and vacuum applications) are available on request.

There is a manual override operated by a screwdriver - bistable.

3 port 2 position valves (3/2) are available Normally Closed (NC) or Normally Open (NO).

5 port 3 position valves (5/3) are available with closed centre (CC), vented centre (VC) or pressurised centre (PC).

This range of valves is also available in a pilot operated version - see related products.

At ACS we specialise in solenoid valves for pneumatics and compressed air and are happy to help and advise on solutions to suit your requirements. Please contact us with details or your application and a member of our team will be happy to help.

On request:

Externally piloted solenoid valves
Manifolds for mounting multiple valves
Low temperature seals
Atex options
