Solenoid valves 3/2 5/2 1/8" & 1/4" BSP

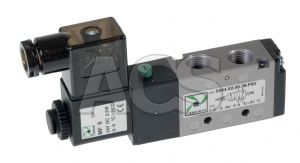

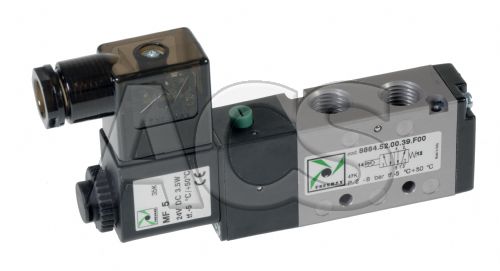

Pneumax series 888 solenoid valves designed for compressed air and pneumatic applications. This is a highly competitive valve range with good performance and a compact design.

3/2 and 5/2 options are listed below. NC = 3/2 Normally closed, NO = 3/2 Normally open.

Air supply should always be connected to port 1.

These are aluminium spool/sleeve body ported valves with 1/8" and 1/4" BSP Connection and suitable for a wide range of applications.

Valves, coils and cable plugs must be ordered separately. One coil and cable plug required for sol/spring versions and two for sol/sol versions.

The solenoid operator includes a manual override.

Flow rate given below is at 6 bar with a 1 bar pressure drop.

Available on request:

5/3 valves
Manifold mounting system

At ACS we offer a wide range of solenoid valves for standard and special applications - whatever your requirements please contact us and a member of our team will be happy to help.
