Description

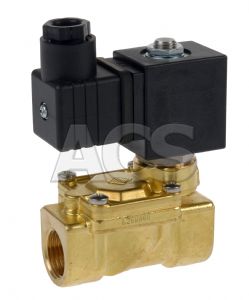

A range of solenoid valves with brass body suitable for a wide range of applications for neutral liquids and gases including compressed air and water.
This is a servo assisted solenoid valve which means that it requires a minimum pressure of 0.2 bar to operate and is available in normally closed and normally open versions.
The valves and coils are manufactured by ODE - the valves are the 21W series and they use the BDA coil 8W or 14.5VA. The coils are CE approved. Coils which are CE – UL – CSA – VDE approved are available on request.
These solenoid valves have BSP Female threaded ports and come in sizes from 3/8” up to 2” BSP.
Solenoid valve, coil and cable plug must be ordered separately according to the voltage required.
The solenoid valves are supplied with a viton seal as standard. Nitrile (NBR) and EPDM seals are available on request.
At ACS we supply solenoid valves for a wide range of applications and we are always keen to hear from you. Whatever your requirements please contact us and a member of our team will be happy to help.
Technical Details
|
Datasheets
21W NC 13
21W NC 19-50
21W NO 13
21W NO 19-50
3-BDA08012AS-1
|
