Mechanically operated valve - Medium duty 1/8" & 1/4" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

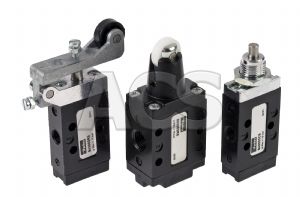

A range of three and five port spool valves actuated by a plunger, roller or roller lever. Available with 1/8" or 1/4" BSP ports.

1/8" BSP valves are referred to as midget spool and 1/4" BSP as intermediate spool

Technical Details

Temperature:	-10 to +80 deg C
Pressure:	10 bar (max)
Qmax:	8.5 l/s (1/8" BSP)
	29l/s (1/4" BSP)

Datasheets

Mechanically operated valve - Medium duty 1/8 & 1/4 BSP datasheet

midgetspoolmech

interspoolmech

Prices (Click quantity for more availability info)

	Mftrs List No	Type	Ports	Order Code	Available	Each
Plunger/Spring
	B43003CS	3 port	1/8" BSP	106609	0	£119.59
	B53003CS	3 port	1/4" BSP	106610	0	£184.45
	B43004CS	5 port	1/8" BSP	106611	0	£131.20
	B53004CS	5 port	1/4" BSP	106612	0	£203.20
Roller Lever/Spring
	B43003RS	3 port	1/8" BSP	106613	0	£156.27
	B43004RS	5 port	1/8" BSP	106615	0	£162.43
Roller/Spring
	B53003RS	3 port	1/4" BSP	106614	0	£198.41
	B53004RS	5 port	1/4" BSP	106616	0	£215.24

(All Prices Exclude VAT)
