Description

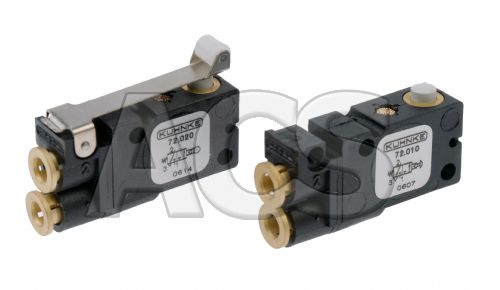

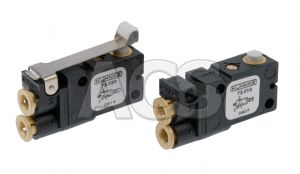

A range of three port normally closed (N/C) or normally open (N/O) poppet valves actuated by a plunger or roller lever. Designed specially for mounting in confined spaces and with very low actuating forces.
4mm push in connection ports.
An air assisted servo controlled pilot consumes approximately 0.07 litres/minute and provides an air cushion for the plunger operator. The pilot supply is internally connected to port 1 (air supply) of the valve.
Technical Details
|
Datasheets
Series 72 Button
Series 72 Roller
|
