Description

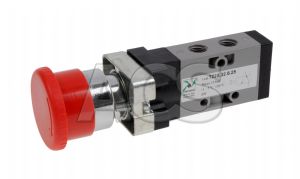

Palm button hand operated, push to operate, rotate to unlock valve with technopolymer body suitable for panel mounting (22.5mm cutout).

Applications include use as an "Emergency stop" button.

1/8" BSP and available in 3/2 and 5/2 version with red push button.

Technical Details

Max pressure:	10 bar
Temperature:	-5 to +50 deg C
Flow rate:	620 Nl/min (@ 6 bar with 1 bar pressure drop)
Orifice size:	6mm
Operating force:	33 N

Datasheets

Palm push button 2 position 1/8 BSP 3/2 & 5/2 datasheet

Click Here

Prices (Click quantity for more availability info)

Type	Colour	Order Code	Available	Each	Quantity
3/2	Red	121391	2	£72.84
5/2	Red	121429	0	£76.53

(All Prices Exclude VAT)
