Raised Push Button/spring Valve 1/8" BSP 3/2 & 5/2

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

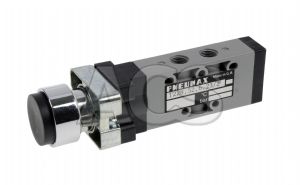

Raised push button hand operated, spring return valve with technopolymer body suitable for panel mounting (22.5mm cutout).

1/8" BSP and available in 3/2 and 5/2 version with red, black, green or yellow push buttons.

Technical Details

Max pressure:	10 bar
Temperature:	-5 to +50 deg C
Flow rate:	620 Nl/min (@ 6 bar with 1 bar pressure drop)
Orifice size:	6mm
Operating force:	33 N

Datasheets

Raised Push Button/spring Valve 1/8 BSP 3/2 & 5/2 datasheet

Click Here

Prices (Click quantity for more availability info)

Type	Colour	Order Code	Available	Each
3/2	Red	121387	0	£56.97
3/2	Black	121388	2	£56.97
3/2	Green	121389	0	£56.97
3/2	Yellow	121390	0	£56.97
5/2	Red	121425	0	£60.87
5/2	Black	121426	2	£60.87
5/2	Green	121427	0	£60.87
5/2	Yellow	121428	0	£60.87

(All Prices Exclude VAT)
