Push Button/spring Valve 1/8" BSP 3/2 & 5/2

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

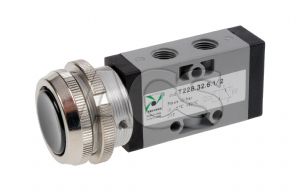

Push button operated, spring return valve with technopolymer body suitable for panel mounting (30mm cutout).

1/8" BSP and available in 3/2 and 5/2 version with red, black or green push buttons.

Technical Details

Max pressure:	10 bar
Temperature:	-5 to +50 deg C
Flow rate:	620 Nl/min (@ 6 bar with 1 bar pressure drop)
Orifice size:	6mm
Operating force:	33 N

Datasheets

Push Button/spring Valve 1/8 BSP 3/2 & 5/2 datasheet

Click Here

Prices (Click quantity for more availability info)

Type	Colour	Order Code	Available	Each
3/2	Red	121380	0	£40.10
3/2	Black	121381	2	£40.10
3/2	Green	121382	0	£40.10
5/2	Red	121418	0	£43.71
5/2	Black	121419	2	£43.71
5/2	Green	121420	0	£43.71

(All Prices Exclude VAT)
