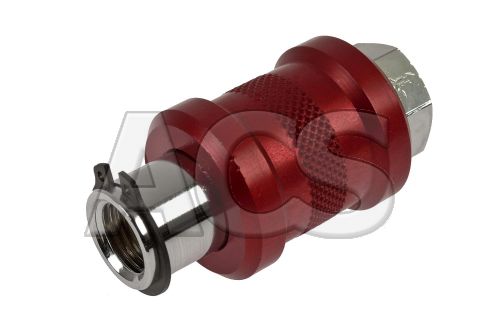

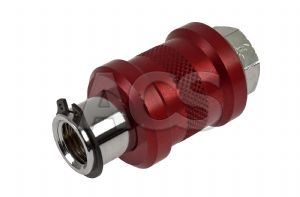

Legris Sleeve Valve M8 - 3/4" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

A hand operated valve with BSP threaded female connection on both sides. Suitable for compressed air systems.

When the sleeve is moved in one direction, air is supplied to the system. When it is moved the other, air in the system is vented to atmosphere.

Technical Details

Max pressure:	16 bar
Sleeve:	Anodised aluminium
Temperature:	-5 to +70 deg C
Seals:	Nitrile rubber
Body:	Nickel plated brass

Manufactures Ref:	0669

Datasheets

Legris Sleeve Valve M8 - 3/4 BSP datasheet

Click Here

Prices (Click quantity for more availability info)

Connection	Order Code	Available	Each
M8 x 0.8	145721	2	£20.54
1/8" BSP	106291	7	£20.80
1/4" BSP	106292	1	£23.22
3/8" BSP	106293	0	£29.55
1/2" BSP	106294	1	£36.74
3/4" BSP	145722	0	£55.08

(All Prices Exclude VAT)
