Description

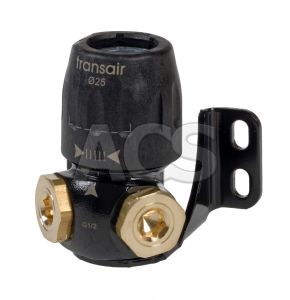

Transair wall bracket. This bracket has a Transair push in fitting on the inlet (16.5 or 25mm) and either 1, 2 or 3 outlets - all 1/2" BSP Female with 45 and 90 degree options.

For the complete Transair range see related products links and for technical details and installation guide click on the pdf links below.

At ACS we specialise in the Transair system for compressed air distribution which is suitable for large and small installations alike. Whatever your requirements please contact us - a member of our team will be happy to help.

Technical Details

Manufacturers ref:	6639, 6681, 6682, 6695
Max Pressure:	16 bar
Vacuum:	99%
Temperature:	-20 to +85 deg C
Compatibility:	Lubricated or oil-free compressed air
	Industrial vacuum, nitrogen (99.99% purity), inert gas

Datasheets

Transair Wall Bracket with 1, 2 or 3 outlets datasheet

Click Here

Prices (Click quantity for more availability info)

	Size	Order Code	Available	Each
Wall Bracket 1 port 45 deg
	16.5mm x G1/2"	122791	6	£44.02
	25mm x G1/2"	122792	8	£50.97
Wall Bracket 2 port 90 deg
	16.5mm x G1/2"	112074	2	£50.45
	25mm x G1/2"	112076	15	£58.33
Wall Bracket 2 port 45 deg
	16.5mm x G1/2"	122794	10	£51.43
	25mm x G1/2"	122795	10	£59.43
Wall bracket 3 port
	25mm x G1/2"	122797	8	£72.33

(All Prices Exclude VAT)
