Description

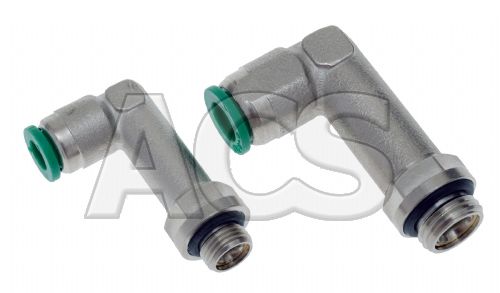

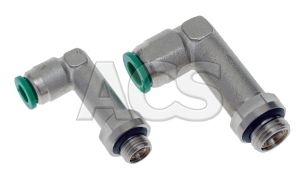

Extended stud elbow push in fitting with bspp and bspt threads and suitable for metric od tube 4mm to 10mm.

The body is orientable about the male stud end.

Technical Details

	For data sheet reference,
	Manufacturers' part numbers refer as follows:
	EGL=BSPP thread
	EGCL=BSPT thread

Datasheets

Olab Push in Stud Extended Elbow 4mm - 10mm datasheet

Click Here

Prices (Click quantity for more availability info)

OD tube (mm)	Thread	Order Code	Available	Each
4	1/8" BSPP	127851	0	£4.58
4	1/4" BSPP	127852	0	£5.75
4	1/8" BSPT	131231	0	£4.58
4	1/4" BSPT	131232	0	£5.67
6	1/8" BSPP	127853	43	£4.60
6	1/4" BSPP	127854	0	£5.75
6	1/8" BSPT	131233	74	£4.68
6	1/4" BSPT	131234	95	£5.67
8	1/8" BSPP	127855	80	£5.53
8	1/4" BSPP	127856	45	£6.15
8	3/8" BSPP	127857	0	£6.77
8	1/8" BSPT	131235	0	£5.62
8	1/4" BSPT	131236	0	£6.00
8	3/8" BSPT	131237	0	£6.70
10	1/4" BSPP	127858	0	£7.42
10	3/8" BSPP	127859	0	£7.78
10	1/4" BSPT	131238	0	£7.23
10	3/8" BSPT	131239	0	£7.55

(All Prices Exclude VAT)
