Legris LF3000 Push In Stud - Male Metric & BSPP

Description

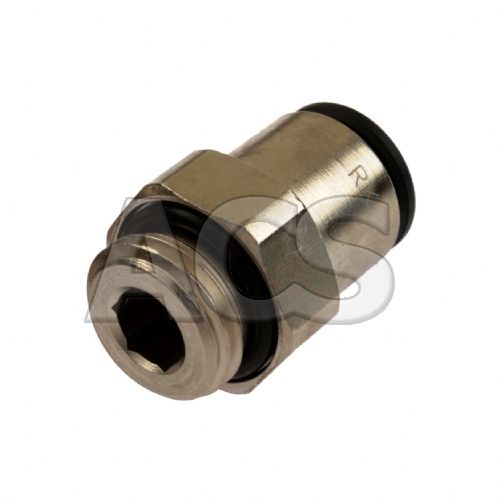

Legris LF3000 push in fitting - straight fitting with metric or parallel BSP male thread. To suit metric outside diameter tubing.

Technical Details

Datasheets

Click Here

Prices (Click quantity for more availability info)

Tube OD	Thread	Order Code	Available	Each
3mm	M3 x 0.5	116671	16	£5.87
-	M5 x 0.8	116672	13	£6.57
4mm	M3 x 0.5	113291	10	£5.32
-	M5 x 0.8	101001	25	£2.88
-	M7 x 1	113292	5	£6.38
-	G1/8	101002	19	£2.52
-	G1/4"	101003	14	£2.80
6mm	M5 x 0.8	101011	31	£3.17
-	M7 x 1	113293	10	£8.77
-	M10 x 1	113294	12	£3.73
-	M12 x 1.5	113295	11	£7.22
-	G1/8"	101012	37	£2.63
-	G1/4"	101013	37	£3.07
-	G3/8"	112594	25	£3.75
-	G1/2"	112595	27	£4.78
8mm	M10 x 1	113296	11	£8.98
-	M12 x 1.5	113297	11	£8.12
-	G1/8"	101016	172	£3.07
-	G1/4"	101017	0	£3.10
-	G3/8"	101018	21	£4.42
-	G1/2"	112596	30	£6.40
10mm	G1/4"	101022	30	£4.68
-	G3/8"	101023	14	£5.12
-	G1/2"	101024	21	£7.77
12mm	G1/4"	101028	30	£6.57
-	G3/8"	101029	23	£6.87
-	G1/2"	101030	25	£8.13
14mm	G3/8"	113298	22	£8.63
-	G1/2"	113299	10	£9.02
16mm	G3/8"	124083	8	£15.63
-	G1/2"	124084	10	£15.62

(All Prices Exclude VAT)
