Description

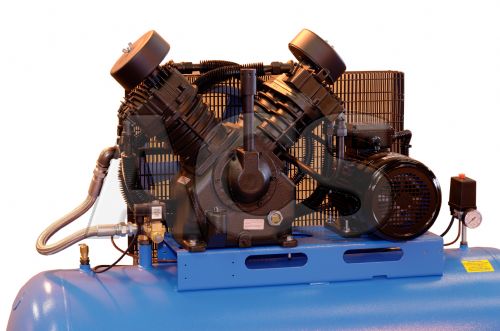

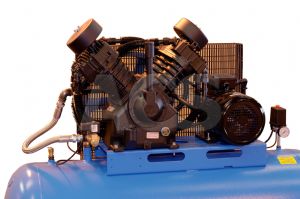

A range of receiver mounted, electric, belt driven air compressors with free air delivery 0.18 - 1.4 m3/min (or 6.5 to 48 cfm). This range has all cast iron pumps. Slow running compressors designed for long life, quieter operation and suitable for heavy duty applications.

Available in single and three phase versions.

Automatic Stop/Start Control, including starter and pressure switch.

Supplied with shutoff valve on receiver outlet.

Pressure switch can be adjusted to give lower pressure if required.

Max pressure: 1 stage pump - 9 bar, 2 stage pumps - 11 & 12 bar

Sound pressure level: 87 dBA (approx)

Recommended oil: ISO100 (or SAE30) non detergent compressor oil - see related products.

Outlet is via ball valve on receiver - 1/2" BSP female (3/4" BSP on 10 & 15HP machine)

Flexible mounting feet are recommended for all static machines and can be ordered separately.

On request:

2.0HP Compressor with 3 phase motor

Compressors with WIMES compliant motor (WIMES = Water Industry Mechnanical and Electrical Specifications)

Please note the following from the technical notes:
DISP=Displacement
FAD=Free Air Delivery (@ 90 psi)

Technical Details

		Receiver
DISP	FAD	Capacity	Motor	Pump
m3/min	m3/min	(litres)	(HP)	(RPM)	Phase	Pump	Model No.

Static - 1 stage
0.26	0.18	110	2.0	670	Single	vt4723	CH20110S

Static - 2 stage
0.61	0.53	270	5.5	700	Three	tf2111	CH55270S
0.89	0.77	270	7.5	1020	Three	tf2111	CH75270S
1.22	1.02	270	10.0	700	Three	tx2101	CH100270S
	1.4	350	15.0	1000	Three	tx2118	CH150350S

Datasheets

CH Compressors - Reciprocating - Belt drive datasheet

202307_vt4723

202307_tf2111

202307_tx2101_tx2118

Prices (Click quantity for more availability info)

	Motor (HP)	Phase	Tank size	Dimmensions	Order Code	Available	Each
Static (1 stage)
	2.0	Single	110 litre	L:1020 W:390 H:770	108340	0	£1,297.43
Static (2 stage)
	5.5	Three	270 litre	L:1530 W:500 H:1240	108343	1	£2,487.58
	7.5	Three	270 litre	L:1530 W:500 H:1240	108344	0	£2,753.88
	10.0	Three	270 litre	L:1530 W:500 H1200	108345	1	£5,235.15
	15.0	Three	350 litre	L:1900 W:600 H:1200	108347	0	£6,708.05
Anti-vibration mounts (set of 4)
	Free Standing	-	-	-	108370	3	£56.58
	Bolt Down	-	-	-	130981	2	£67.91
Spare parts (2.0 HP)
	A40 V Belt	-	-	-	133217	2	£14.72
	Pressure swtich	-	-	-	133216	18	£24.11
	Non return valve 1/2"	-	-	-	132621	11	£21.17
	Non return valve seal kit	-	-	-	132624	8	£9.05
	Receiver drain valve (3/8")	-	-	-	133213	2	£7.07
	Thermic trip (12 Amp)	-	-	-	133218	2	£33.95
	Air filter	-	-	-	133219	6	£4.93
Spare parts (5.5 & 7.5HP)
	V Belt B59 (5.5HP)	-	-	-	133215	3	£27.38
	V Belt B60 17x1525 (7.5HP)	-	-	-	133227	4	£28.31
	Pressure switch 10/16A	-	-	-	133212	4	£159.40
	Non return valve 1/2"	-	-	-	132621	11	£21.17
	Non return valve seal kit	-	-	-	132624	8	£9.05
	Receiver drain valve (3/8")	-	-	-	133213	2	£7.07
	Air filter element	-	-	-	133214	11	£32.42
Spare parts (10.0HP)
	B69 V-Belt (2 per m/c)	-	-	-	139758	4	£28.86
	B75 V-Belt (2 per m/c)	-	-	-	147971	2	£31.12
	Pressure swtich	-	-	-	133216	18	£24.11
	Non return valve 1"	-	-	-	132623	4	£42.32
	Non return valve seal kit	-	-	-	132626	7	£14.88
	Receiver drain valve (3/8")	-	-	-	133213	2	£7.07
	Air filter element (2 per m/c)	-	-	-	133224	17	£12.00
Spare parts (15.0HP)
	B78 V-Belt (2 per m/c)	-	-	-	133225	0	£29.42
	Pressure Switch	-	-	-	133216	18	£24.11
	Non return valve 1"	-	-	-	132623	4	£42.32
	Non return valve seal kit	-	-	-	132626	7	£14.88
	Receiver drain valve	-	-	-	133226	2	£13.58
	Air filter element (2 per m/c)	-	-	-	133214	11	£32.42

(All Prices Exclude VAT)
