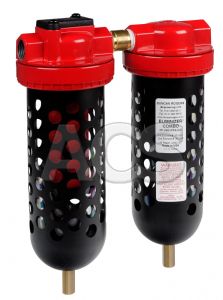

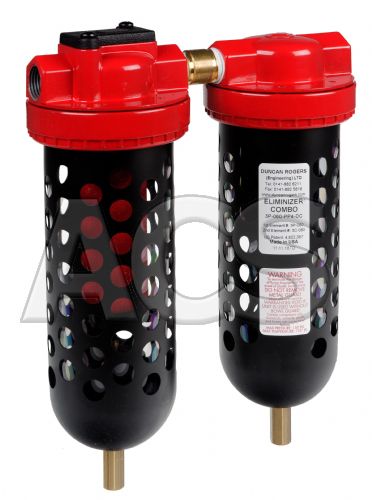

Eliminizer Combo - Dryer/Filter 1/4" - 1"

A range of dryer/filters and coalescer combos (up to 150 cfm) to provide water, oil and dirt free air to 0.01µm. This is a high quality 0.01µm coalescer which uses the Eliminizer® dryer/filter (see above) as a pre- filter. This allows the coalescer to perform more effectively and lengthens element life.

Both units fitted with automatic drain valves and can be ordered with or without a differential pressure indicator to monitor condition of elements.

Available with polycarbonate bowl with guard or with metal bowl.

Main Data
Pressure: 10 bar max
Temperature: Polycarbonate bowl +50 deg C (Metal bowl +65 deg C)
Pressure drop: <2 psi at 100 psi (at recommended flow rate)
Filtration: 0.01µm
Efficiency: 99.99998%

ISO8573.1: oil & particulate class 1 (see engineers data section for a breakdown of ISO8573.1 numbers)

When selecting an Eliminizer Combo choose a unit where the flow required is approximately 50% of the maximum in the table below.
