Description

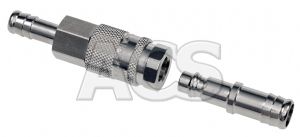

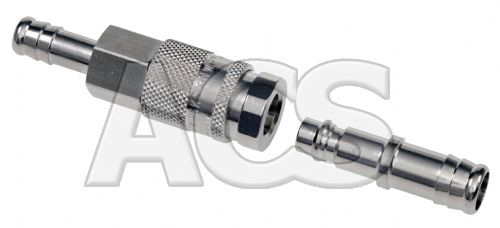

Rectus series 95 & 96 quick release couplings for breathing air. This range incorporates the ultraflo valve which offers high flow rates.
These couplings include a safety lock. To disconnect the plug has to be pushed further into the coupling before it can be released. This prevents unintentional disconnection.
The series 95 cannot be interconnected with the series 96.
This coupling is a 'single shut off' type which means that when the coupling and plug are separated the air in the plug side is vented to atmosphere. The coupling should always be fitted on the upstream side of the air flow.
The 95KS and 96KS couplings conform to EN 139.
For breathable air hose which conforms to EN 14593 & EN 14594 (used to be EN139:1994) take a look at the Nobelair AS/R Reinforced Breathable Hose.
This range is available in nickel plated brass or stainless steel.
On request we can supply custom made hose assemblies using a breathing air standard hose and series 95 or 96 couplings and plugs.
Whatever your requirements please contact us and a member of our staff will be happy to assist.
Technical Details
|
Datasheets
95KS
96KS
|
