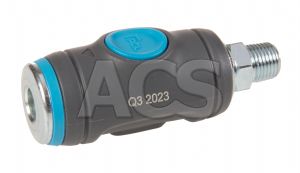

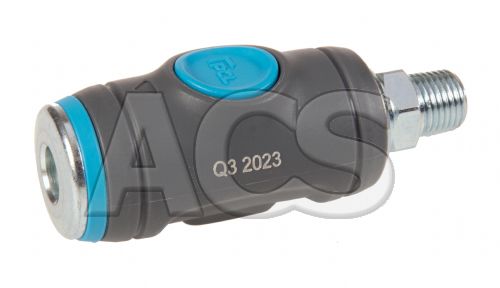

PCL Safety Coupling - Standard Push Button

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

The PCL UK standard push button safety coupling fully conforms to ISO 4414:2010.

Prevents hoses from whipping when they are disconnected thereby reducing the risk of injury.

Available with female parallel and male tapered BSP theads. Also available with hose tail connectors.

Disconnection is a two stage process.

Can be used with normal PCL standard plugs (see Airflow couplings section)

Technical Details

Nominal Bore:	4.8 mm
Max Flow Rate:	43 cfm @ 100 psi
Min Working Pressure:	3 bar / 43.5 psi
Max Working Pressure:	10 bar / 145 psi
Temperature Range:	-20 to +70 Deg C
Interchangeability:	Prevost BSI 06, Rectus 19
Type:	Two Stage Push Button

Materials:
Seal:	Neoprene
Spring:	Steel
Outer Body:	Glass Filled Nylon
Inners/Connectors:	Plated Steel

Datasheets

PCL Safety Coupling - Standard Push Button datasheet

Click Here

Prices (Click quantity for more availability info)

	Type	Size	Order Code	Available	Each
PCL Push Button Coupling
	Female	1/4" BSPP	147221	2	£21.97
	-	3/8" BSPP	147222	2	£21.97
	-	1/2" BSPP	147223	0	£21.97
	Male	1/4" BSPT	147224	3	£21.97
	-	3/8" BSPT	147225	0	£21.97
	-	1/2" BSPT	147226	0	£21.97
	Hosetail	6mm	147227	0	£21.97
	-	8mm	147228	0	£21.97
	-	10mm	147229	0	£21.97
	-	13mm	147230	0	£21.97

(All Prices Exclude VAT)
