Aluminium Double Sided BSP Manifold M5 - 1/2"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

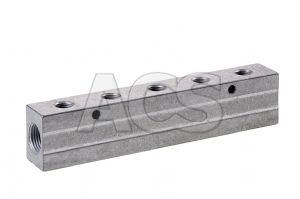

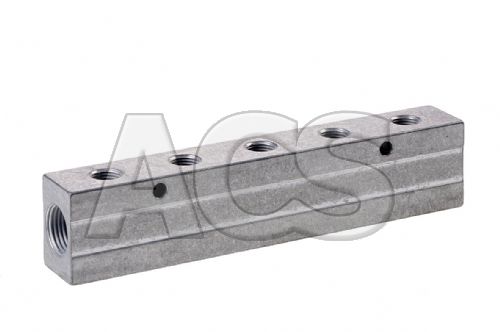

Farbo aluminium double sided distribution manifold with outlets on both sides. Available with female metric and parallel BSP threads.

Normally used in pneumatic systems where a main air connection is required for many different components. There is an inlet on both ends of each manifold.

Technical Details

Maximum Working Pressure:

12 bar

Datasheets

Aluminium Double Sided BSP Manifold M5 - 1/2 datasheet

Click Here

Prices (Click quantity for more availability info)

	Inlet	Outlet	Order Code	Available	Each
Distibution Manifold with 2 x 2 Outlets
	G1/8"	M5	124770	7	£11.17
	G1/4"	G1/8"	124771	15	£15.33
	G3/8"	G1/4"	124772	10	£15.87
	G3/8"	G1/8"	124773	5	£16.52
	G1/2"	G1/4"	124774	6	£23.98
	G1/2"	G3/8"	124775	0	£25.45
	G1/2"	G1/2"	124776	3	£26.37
Distibution Manifold with 2 x 3 Outlets
	G1/8"	M5	124777	0	£13.02
	G1/4"	G1/8"	124778	17	£17.77
	G3/8"	G1/4"	124779	6	£21.33
	G3/8"	G1/8"	124780	7	£19.57
	G1/2"	G1/4"	124781	9	£31.32
	G1/2"	G3/8"	124782	8	£33.03
	G1/2"	G1/2"	124783	4	£34.50
Distibution Manifold with 2 x 4 Outlets
	G1/8"	M5	124784	10	£14.62
	G1/4"	G1/8"	124785	9	£22.47
	G3/8"	G1/4"	124786	10	£26.97
	G3/8"	G1/8"	124787	4	£24.38
	G1/2"	G1/4"	124788	5	£39.13
	G1/2"	G3/8"	124789	2	£41.23
	G1/2"	G1/2"	124790	8	£42.82
Distibution Manifold with 2 x 5 Outlets
	G1/8"	M5	124791	9	£15.92
	G1/4"	G1/8"	124792	6	£27.37
	G3/8"	G1/4"	124793	13	£32.52
	G3/8"	G1/8"	124794	5	£29.87
	G1/2"	G1/4"	124795	11	£46.00
	G1/2"	G3/8"	124796	3	£48.63
	G1/2"	G1/2"	124797	6	£50.88
Distibution Manifold with 2 x 6 Outlets
	G1/8"	M5	124798	10	£16.32
	G1/4"	G1/8"	124799	7	£32.52
	G3/8"	G1/4"	124800	8	£38.07
	G3/8"	G1/8"	124801	5	£35.57
	G1/2"	G1/4"	124802	3	£52.73
	G1/2"	G3/8"	124803	10	£55.92
	G1/2"	G1/2"	124804	6	£58.28

(All Prices Exclude VAT)
