Straight Male Brass Orientable Adaptor BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

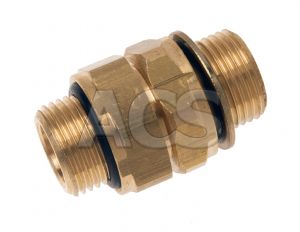

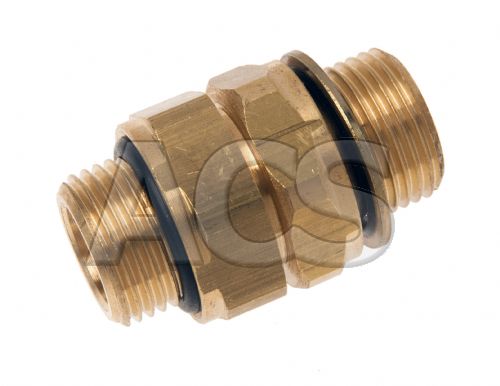

Straight male orientable brass adaptor with BSP Parallel threads. Includes O ring on one side and Bi-Material seal on the other. This fitting allows two components to be joined together at a fixed orientation.

Please note that part numbers preceded by 0151 on attached data sheet refer.

Technical Details

Working Temperature:	-40 to +100 Deg C

Material:
Body:	Brass
O Rings:	NBR
Sealing Washer:	Zinc Plated Steel
	With NBR seal


Manufacturers Ref:	0151..39

Datasheets

Straight Male Brass Orientable Adaptor BSP datasheet

Click Here

Prices (Click quantity for more availability info)

Thread (BSPP)	Order Code	Available	Each
G1/8"	113381	12	£8.68
G1/4"	113382	19	£9.13
G3/8"	113383	10	£12.42
G1/2"	113384	16	£12.43
G3/4"	113385	14	£18.18
G1"	113386	7	£33.92

(All Prices Exclude VAT)
